12V DC Input Dimmable Motion Sensor 1~10V DC Output White Tri - Level Dimming

Dimmable motion sensor DC input tri-level dimming function with 1~10V output signal sensor

5.8GHz C-band microwave, super compact, flexible to be integrated into any suitable fixtures

Features--

Dual-processor technology, real Daylight monitoring function for built-in application.

8 pin DIP switch setting, multiple options for you

Detection range is max.12m in diameter.

3~6m for mounting height

Settings--

Detection range

Hold-time

Hold-time means the time period to keep the lamp on 100% after motion detected.

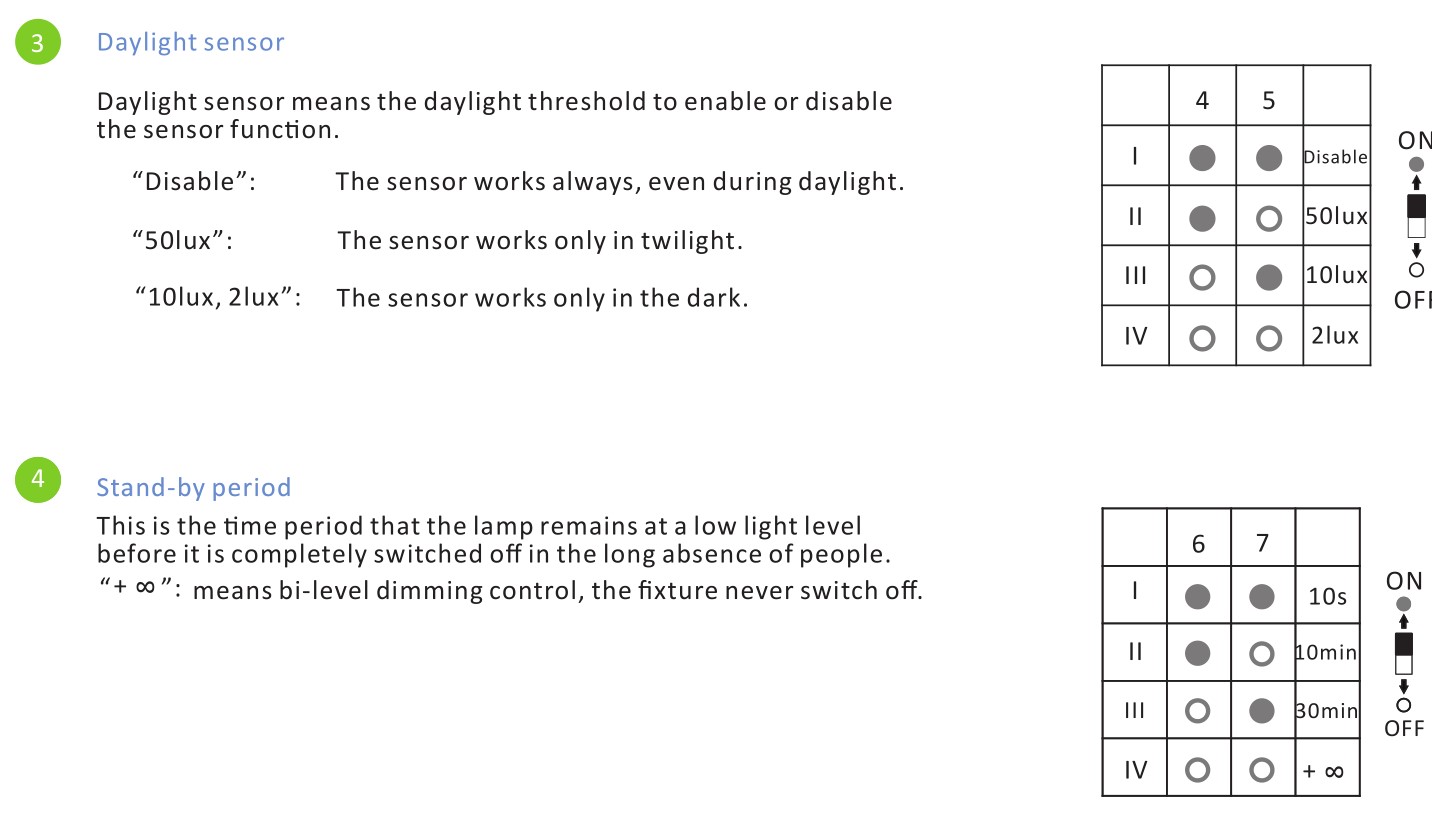

Daylight sensor

Daylight sensor means the daylight threshold to enable or disable the sensor function.

Stand-by period

This is the time period that the lamp remains at a low light level before it is completely switched off in the long absence of people.

Stand-by dimming level

This is the dimmed low light level you would like to have after the hold-time in the absence of people.

Detection pattern--

Daylight monitoring function--

Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, switch on automatically(even without movements) when the ambient light is below target value, and then switch off automatically whenever the artificial light is not required(ambient light is bright enough).
